WP30 LED Adjustable Wall Pack

RZ's new LED adjustable wall packs are your first choice for wall-mounted lighting projects. Adjustable 0 to 90 degrees beam angles meet different needs. 3 IN 1 switch is selectable for CCT, wattage, and photocell ON/OFF control. D2D photocell can automatically turn off at sunrise or during the day, and automatically light up at sunset or night. It is a highly efficient lighting solution that provides long-lasting and energy-saving.

  • High efficacy up to 150lm/W.
  • 3CCT(3000/4000/5000K) and 4 Wattages Selectable offer SKU reduction.
  • AC120-277V & AC120-347V for options.
  • Adjustable beam angle from 0 to 90 degrees, suitable for illuminating specific areas.
  • Professional optical design meets the DLC full cut-off wall pack standard.
  • ADC12 Aluminum die-casting housing provides excellent heat dissipation.
  • Automated Dusk to Dawn photocell functionality.

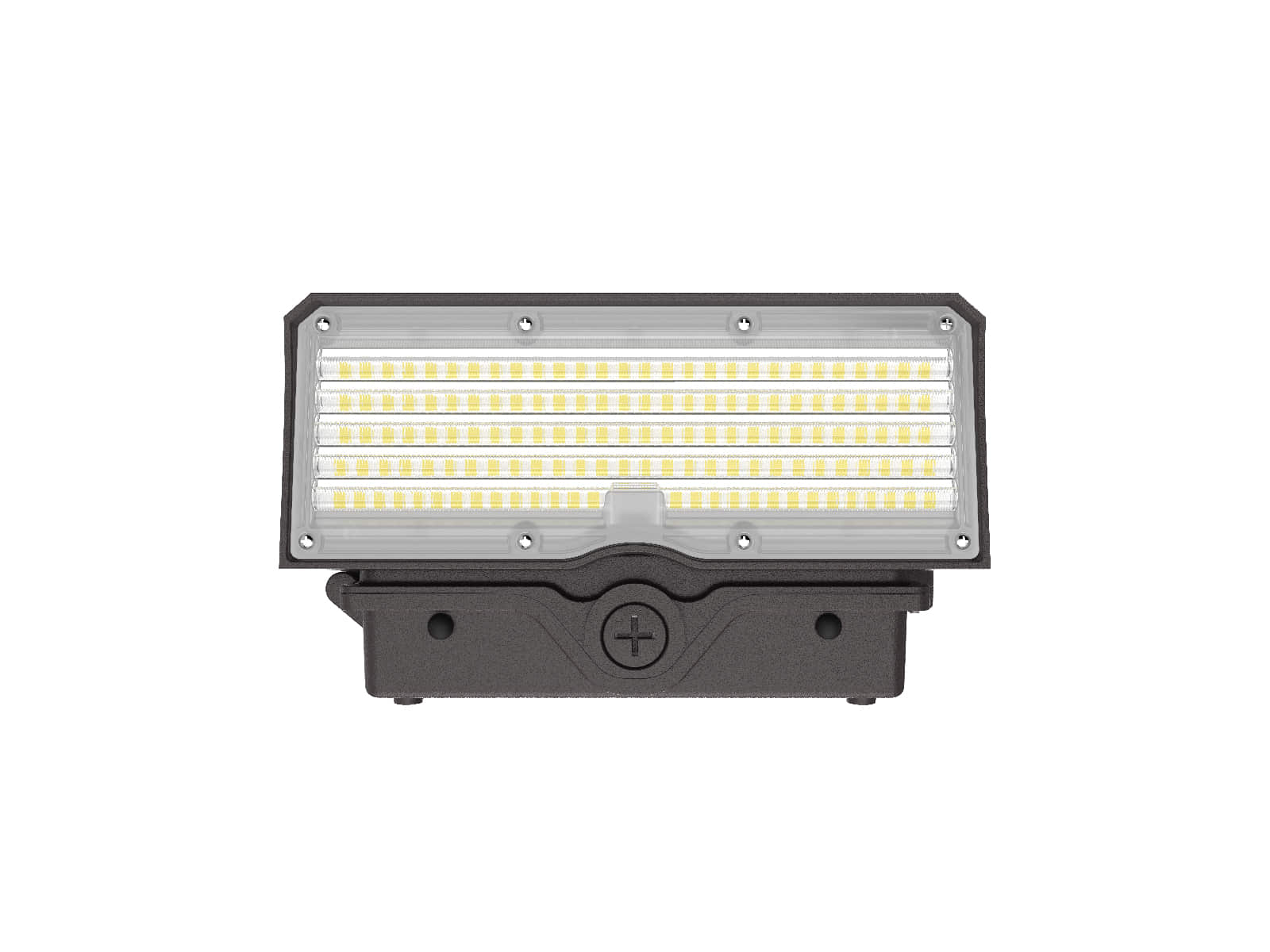

  • Microwave motion sensor and emergency driver available.

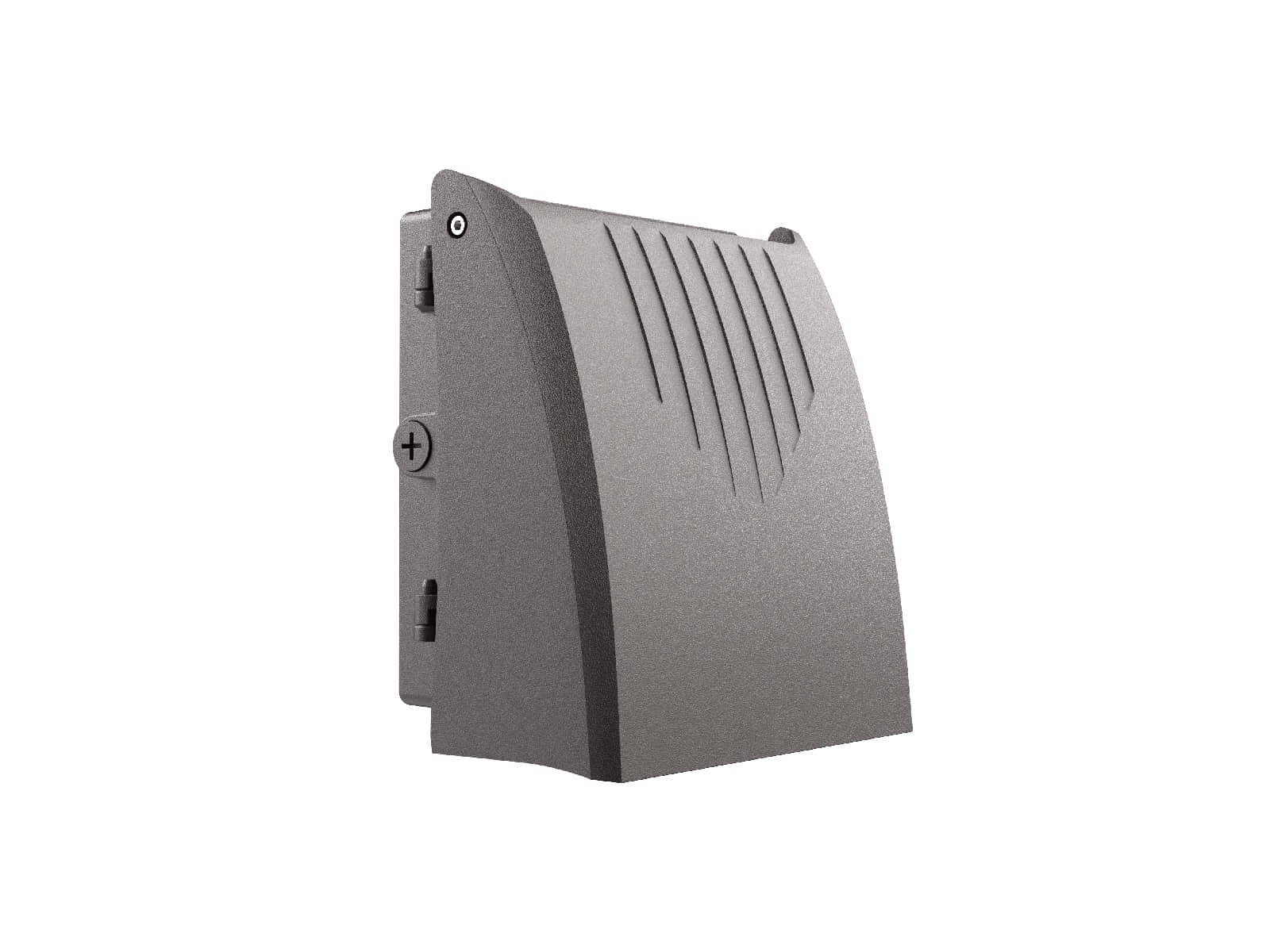

  • Waterproof rated IP65.

Applications: Alleys, Pathways, Landscape Lighting, Outdoor Commercial, Outdoor Residential

Model NO. # Size Watts 3 CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
WP30-8-40Z-AD4C3 8" 15/20/30/40W
Selectable
3CCT
Selectable
3000K
4000K
5000K
150lm/W 6000LM@40W AC120-277V
AC120-347V
0-10V >80 Type Ⅲ
WP30-8-80Z-AD4C3 8" 40/50/60/80W
Selectable
12000LM@80W
WP30-10-80Z-AD4C3 10" 40/50/60/80W
Selectable
12000LM@80W
WP30-10-120Z-AD4C3 10" 60/90/100/120W
Selectable
18000LM@120W
