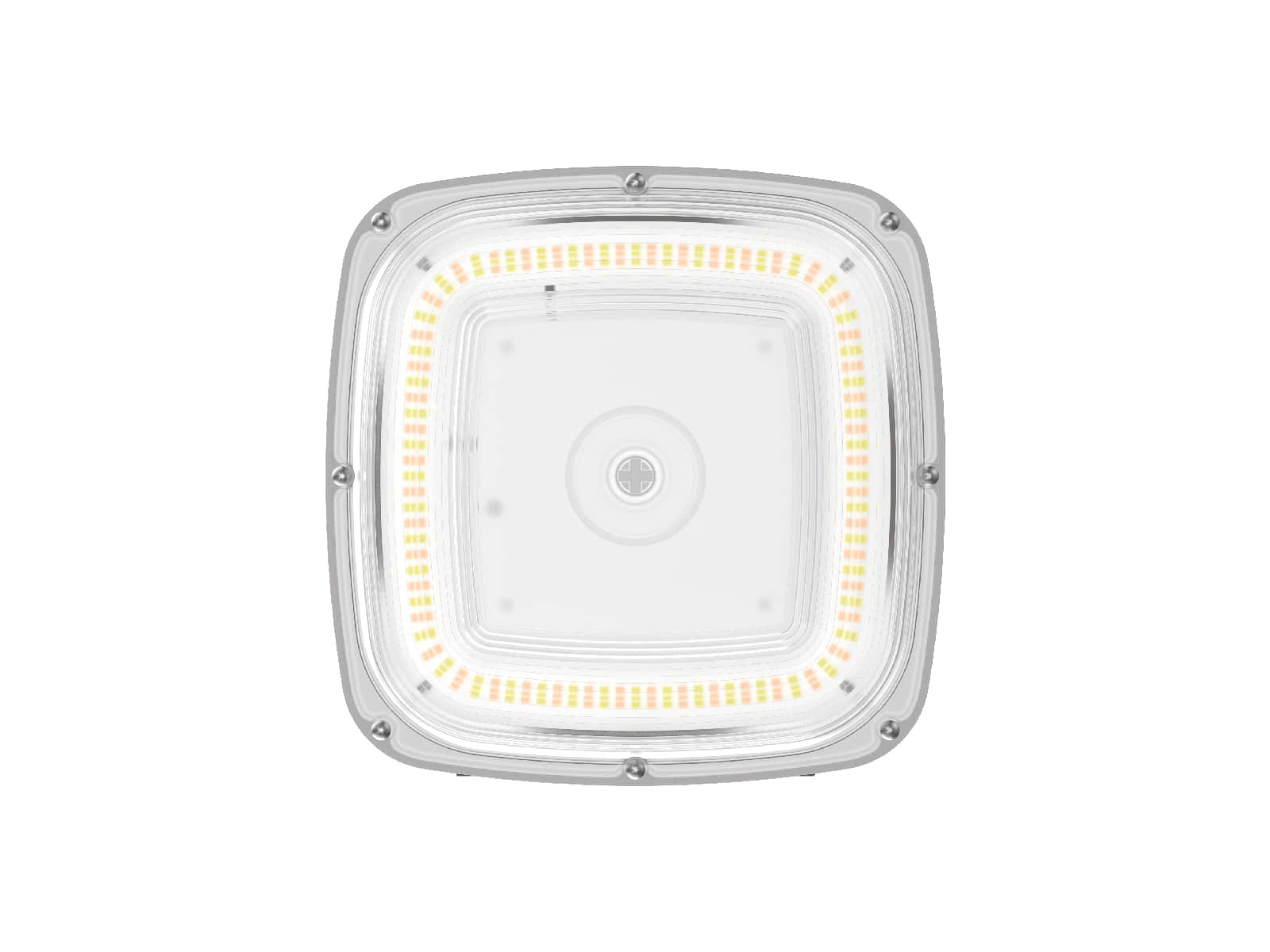

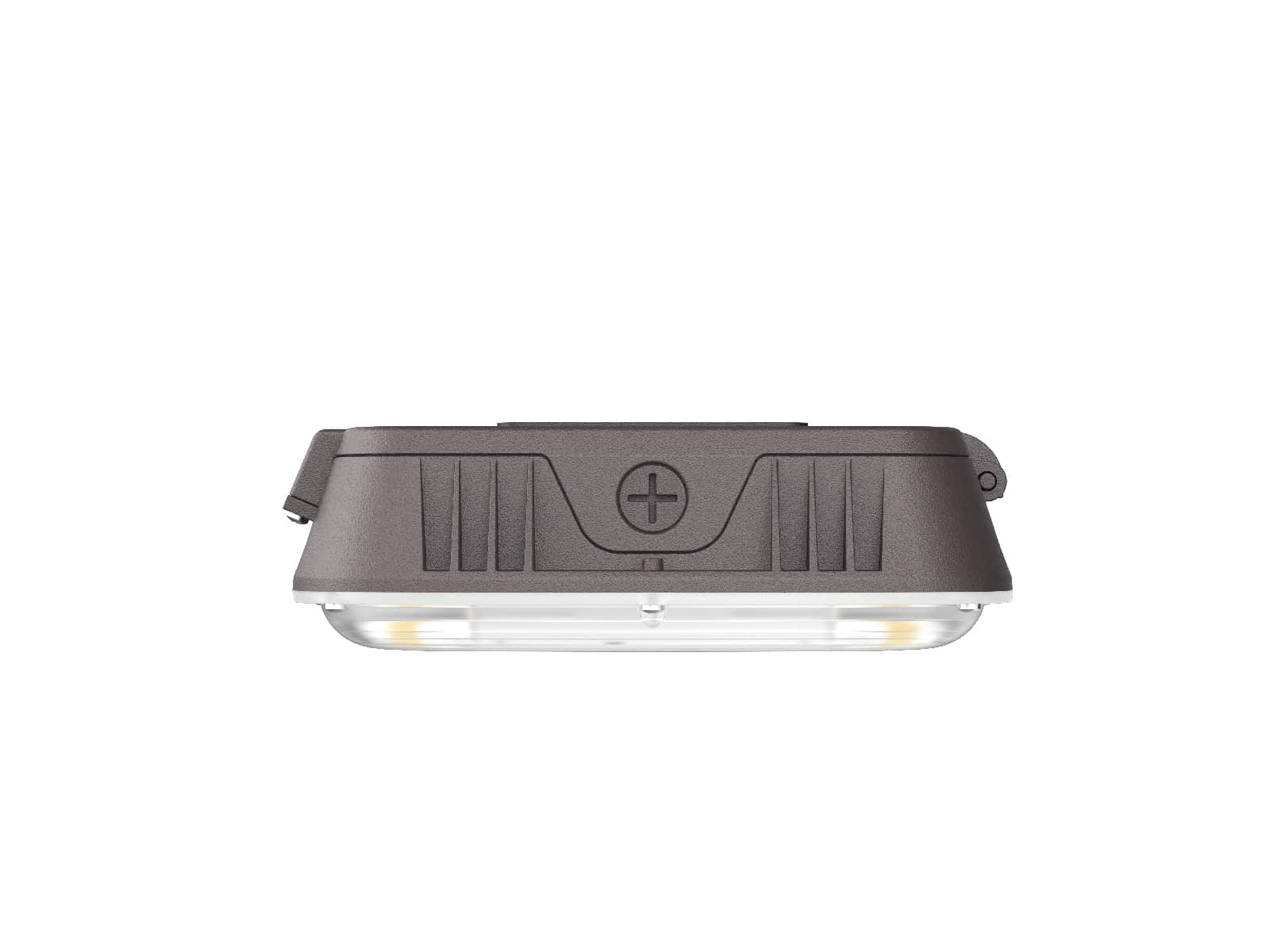

CP08 LED Garage & Canopy Light

RZ’s LED canopy lights are versatile and energy saving fixtures, which are ideal for covered parking area, garages, walkways, and entrances. It comes with CCT and wattage selectable, allowing you to customize the LED light output to best fit your project. These products are energy-efficient replacements of existing surface mount products.

  • DLC category meet both Canopy & Garage.
  • High efficacy up to 150lm/W@5000K.
  • 3CCT(3000/4000/5000K) and 5 Wattages Selectable offer SKU reduction.
  • 4-in-1 Color Temperature, Power, integrated Photocell ON/OFF, and integrated Occupancy sensor ON/OFF switch.
  • 3-in-1 Color Temperature, Power, and integrated Photocell ON/OFF switch.
  • Quick installation with flip-open cover.
  • Plug-in sensor receptacle and Zhaga sensor receptacle optional.
  • Microwave motion sensor, PIR sensor, and emergency driver available.
  • 120-277 VAC & 120-347 VAC for options.

Applications: Covered Parking area, Garages, Walkways, Gas station, Entrances

Model NO. # Watts CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
CP08-10-80Z-AD5C3 80/70/60/40/20W Selectable 3CCTSelectable
3000K
4000K
5000K
150lm/W 12000lm @80W 120-277V
120-347V
0-10V CRI>80 135°/145°
