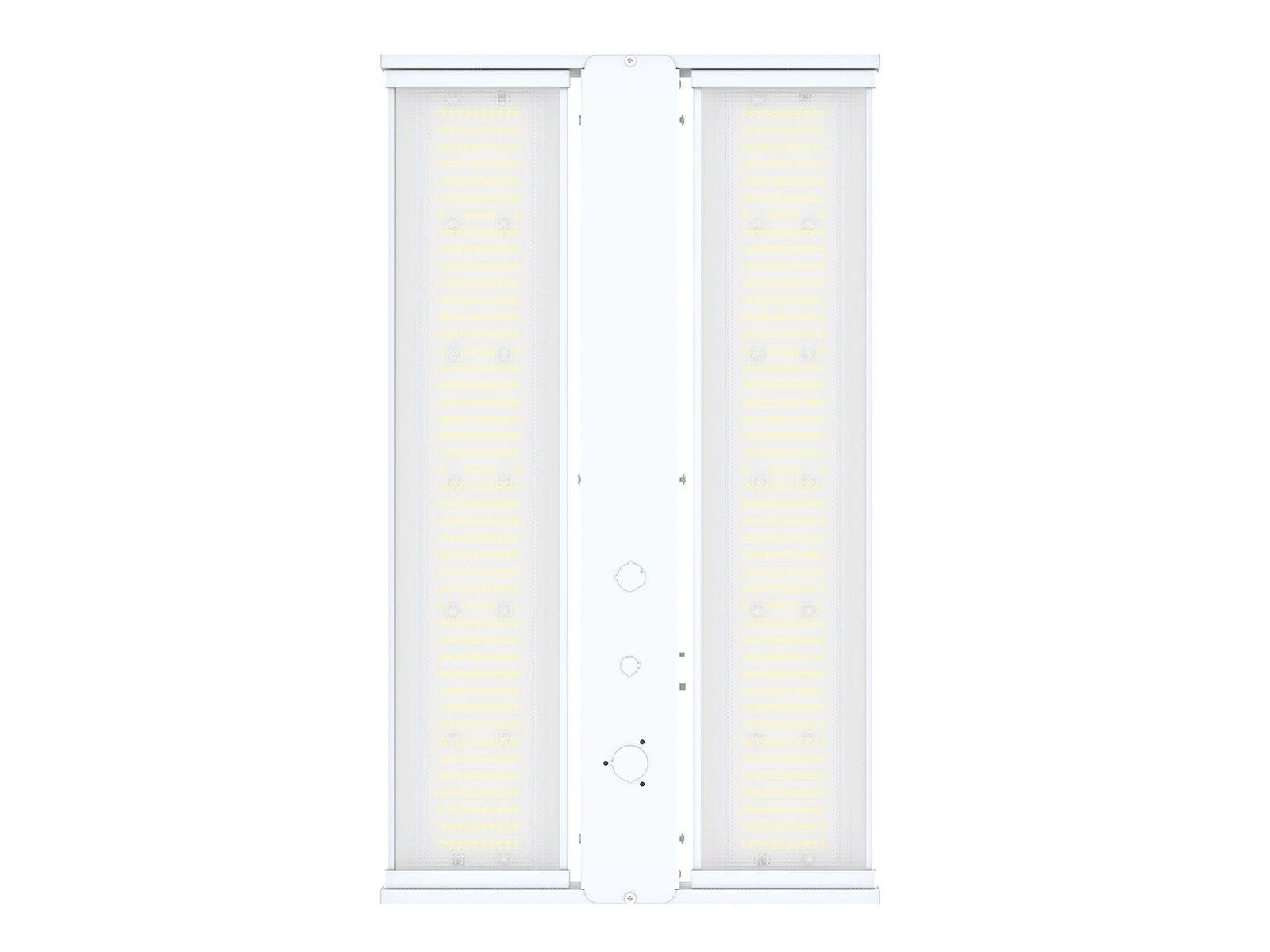

LHB05 LED Linear High Bay

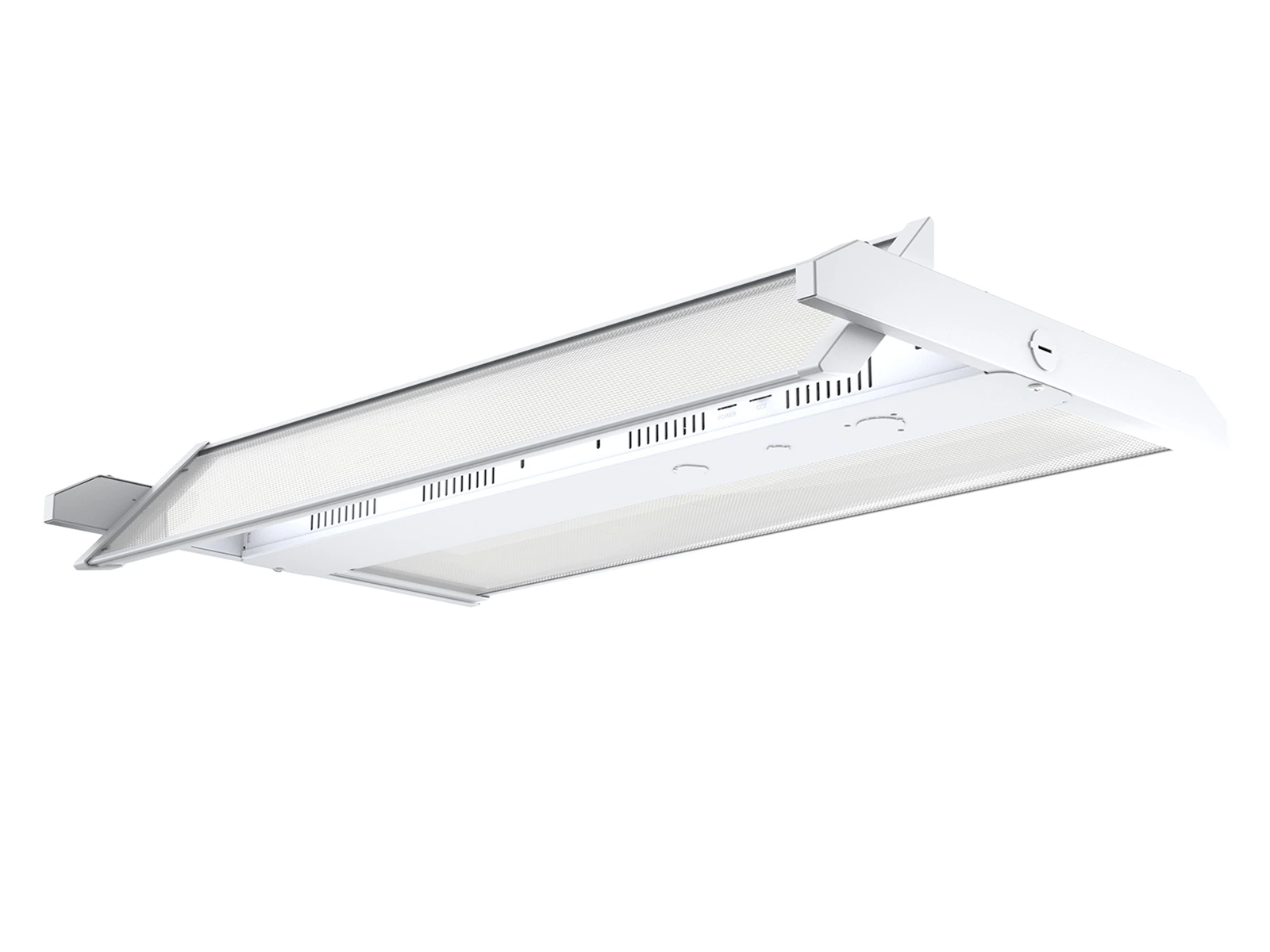

LED new adjustable linear high bay light is ideal for industrial lighting, warehouses, supermarkets, gymnasiums, and production assembly areas to meet different beam angle needs. Replace existing HID high bay light. Solid state lighting technology for long life, low maintenance, and high efficiency.

  • High efficacy up to 150lm/W.
  • 3CCT(3000/4000/5000K) and 5Wattages Selectable offer SKU reduction.
  • Dual lens rotates 135 degrees upward.

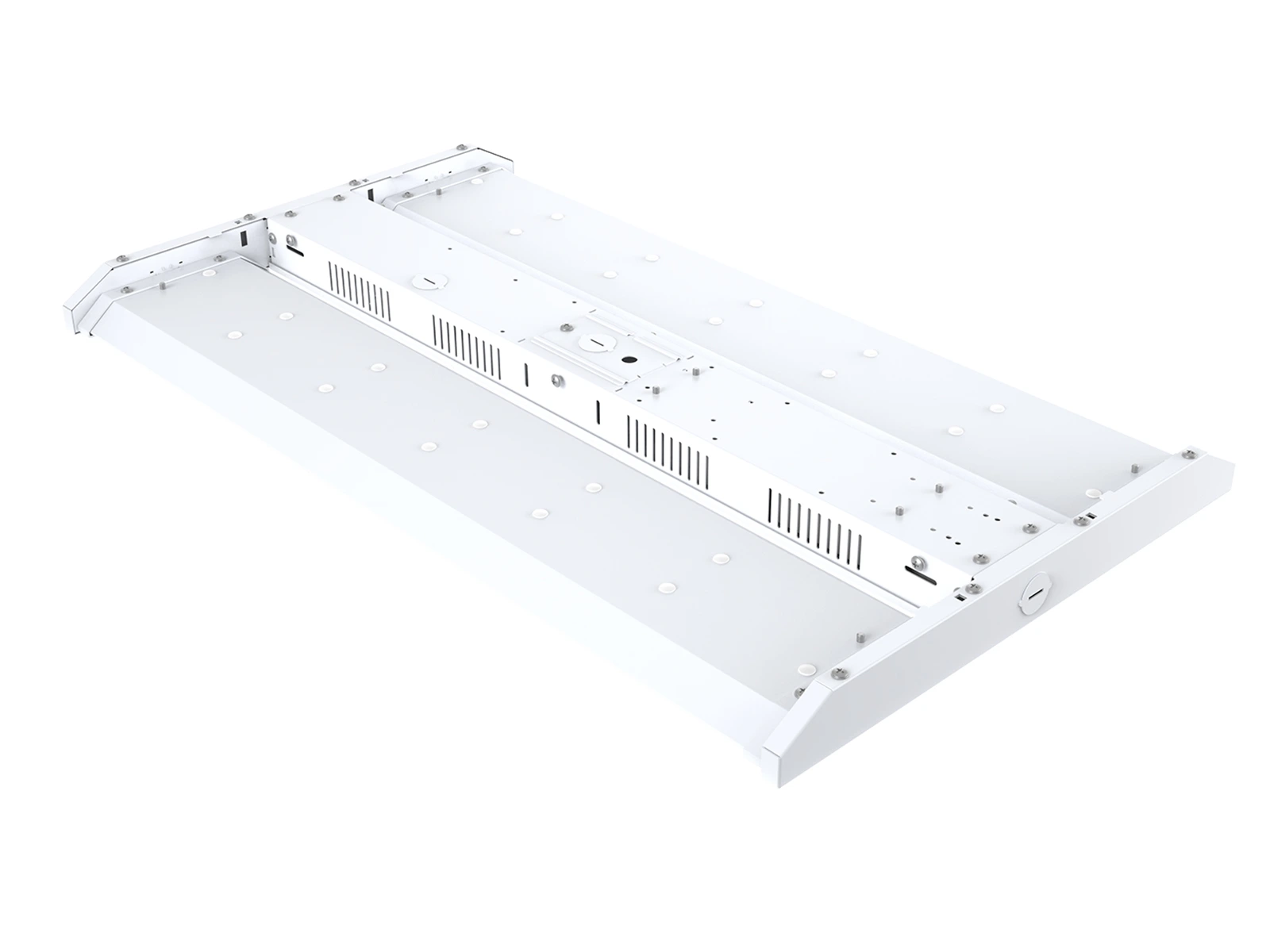

  • PIR sensor, microwave motion sensor and remote controller available.
  • Kits available for Chain Mount, Surface Mount and Pendant mount.
  • Easy screw-in installation of optional sensors.
  • AC120-277V, AC120-347V, and AC277-480V for options.

Applications: Warehouses, Garage, Industrial, Gymnasiums, Manufacturing

Model NO. # Size Watts CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
LHB05-1.5-110Z-AD5C3 1.5FT 50/60/70/90/110W Selectable 3CCT
Selectable
3000K
4000K
5000K
150lm/W 16500lm @110W AC120-277V AC120-347V AC277-480V 0-10V CRI>80 90°
LHB05-2-165Z-AD5C3 2FT 90/110/130/150/165W Selectable 24750lm @165W
LHB05-2-220Z-AD5C3 2FT 150/165/180/200/220W Selectable 33000lm @220W
LHB05-2-300Z-AD5C3 2FT 165/220/255/275/300W Selectable 45000lm @300W
