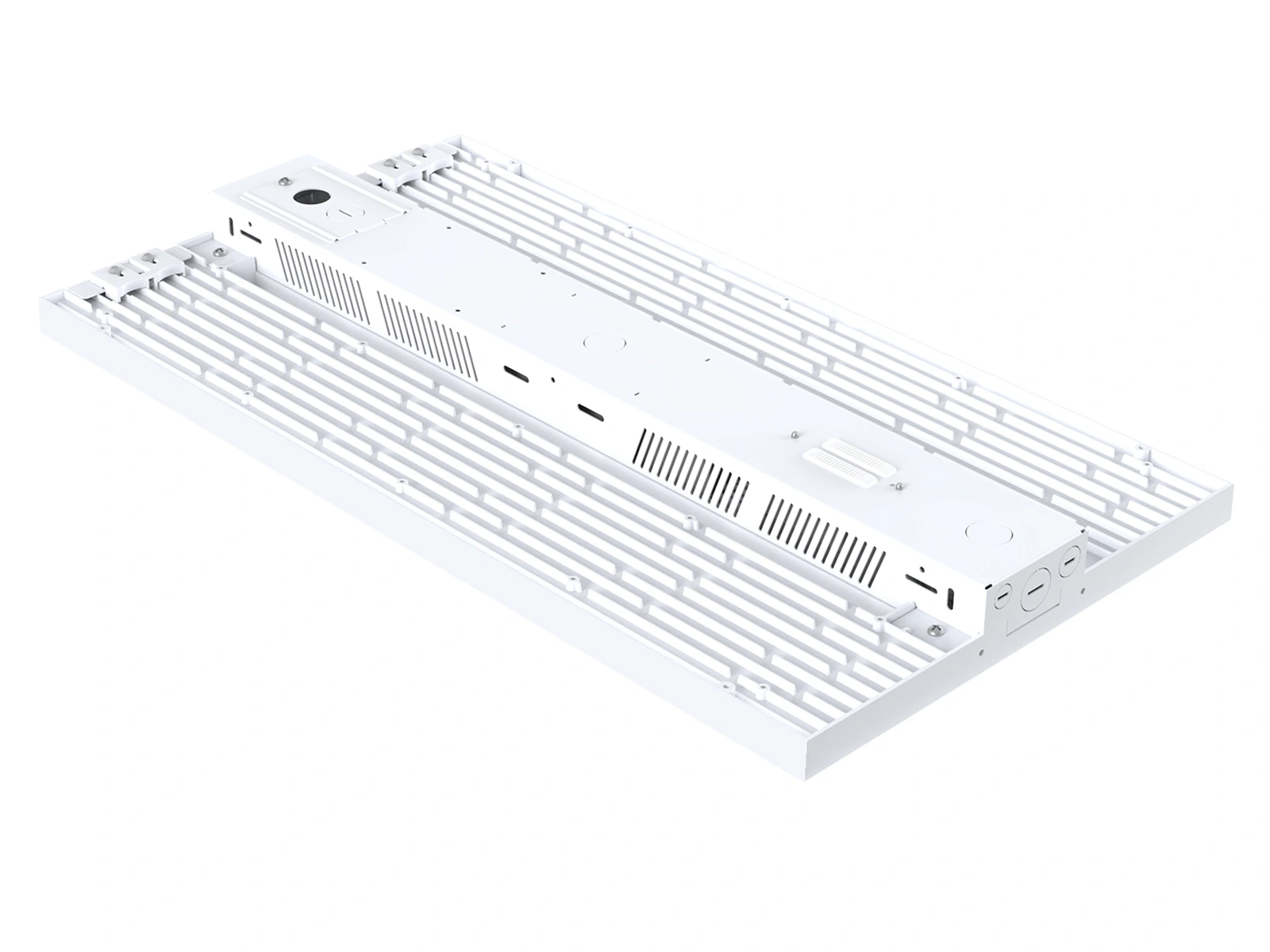

LHB07 LED Linear High Bay

LED new linear high bay light is ideal for industrial lighting, warehouses, supermarkets, gymnasiums, and production assembly areas to meet different beam angle needs. Replace existing HID high bay light. Solid state lighting technology for long life, low maintenance, and high efficiency.

  • High efficacy up to 150lm/W.
  • 3CCT(3500/4000/5000K) and Wattages Selectable offer SKU reduction.
  • Quick tool-free lens changeable to achieve four types of beam angle.
  • Die-cast aluminum housing provides good heat dissipation and a durable lifetime.
  • Multiple installation ways of Chain Mount, Surface Mount, and Pendant Mount.
  • Includes Zhaga receptacle as standard for easy connection.
  • Microwave motion sensor and PIR sensor available.
  • AC120-277V, AC120-347V, and AC277-480V for options.

Applications: Warehouses, Garage, Industrial, Gymnasiums, Manufacturing

Model NO. # Size Watts 3 CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
LHB07-1-120Z-AD3C3 1FT 80/100/120W Selectable 3CCT
Selectable
3500K
4000K
5000K
150lm/W 18000LM @120W AC120-277V AC120-347V AC277-480V 0-10V >80 Optics
interchangeable
Prismatic diffuser: 65°, 90°, 100°
Optical lens: 45° x 90°
LHB07-1.5-210Z-AD3C3 1.5FT 160/180/210W Selectable 31500LM @210W
LHB07-2-320Z-AD3C3 2FT 240/280/320W Selectable 48000LM @320W
LHB07-3-400Z-AD3C3 3FT 240/320/400W Selectable 60000LM @400W
