LP03 Commercial Strip Light

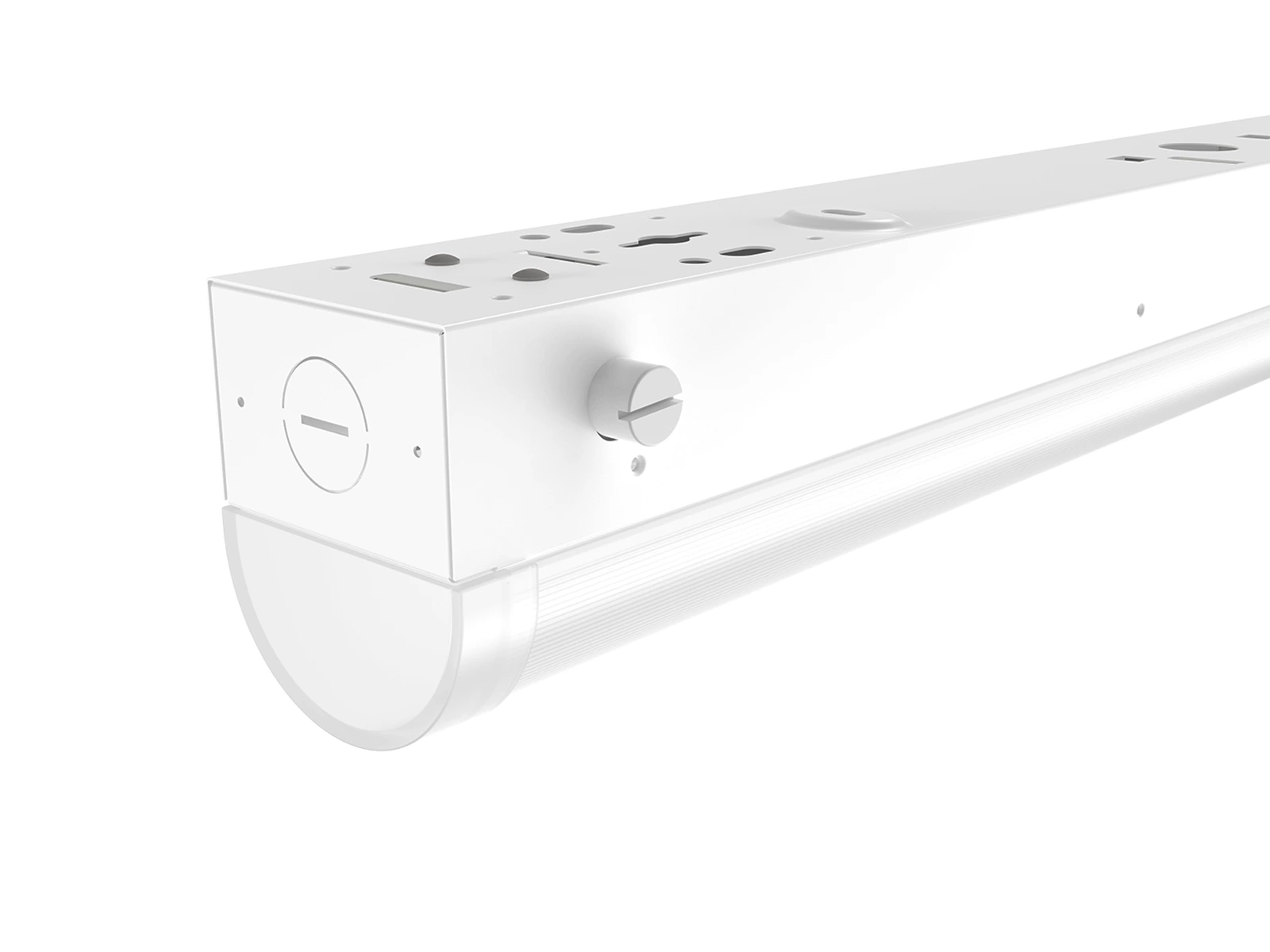

The commercial strip light is an ideal solution for retail, parking garages, and store applications. Comes with a 5 CCT & wattage DIP switches with three types of changeable lenses, which allows the customer to choose the most suitable color temperature, lumens output, and lighting distribution for projects. Housing constructed of cold-rolled steel makes it very durable yet light in weight. With a high-transmission PC lens, and the efficacy can reach up to 140lm/W.

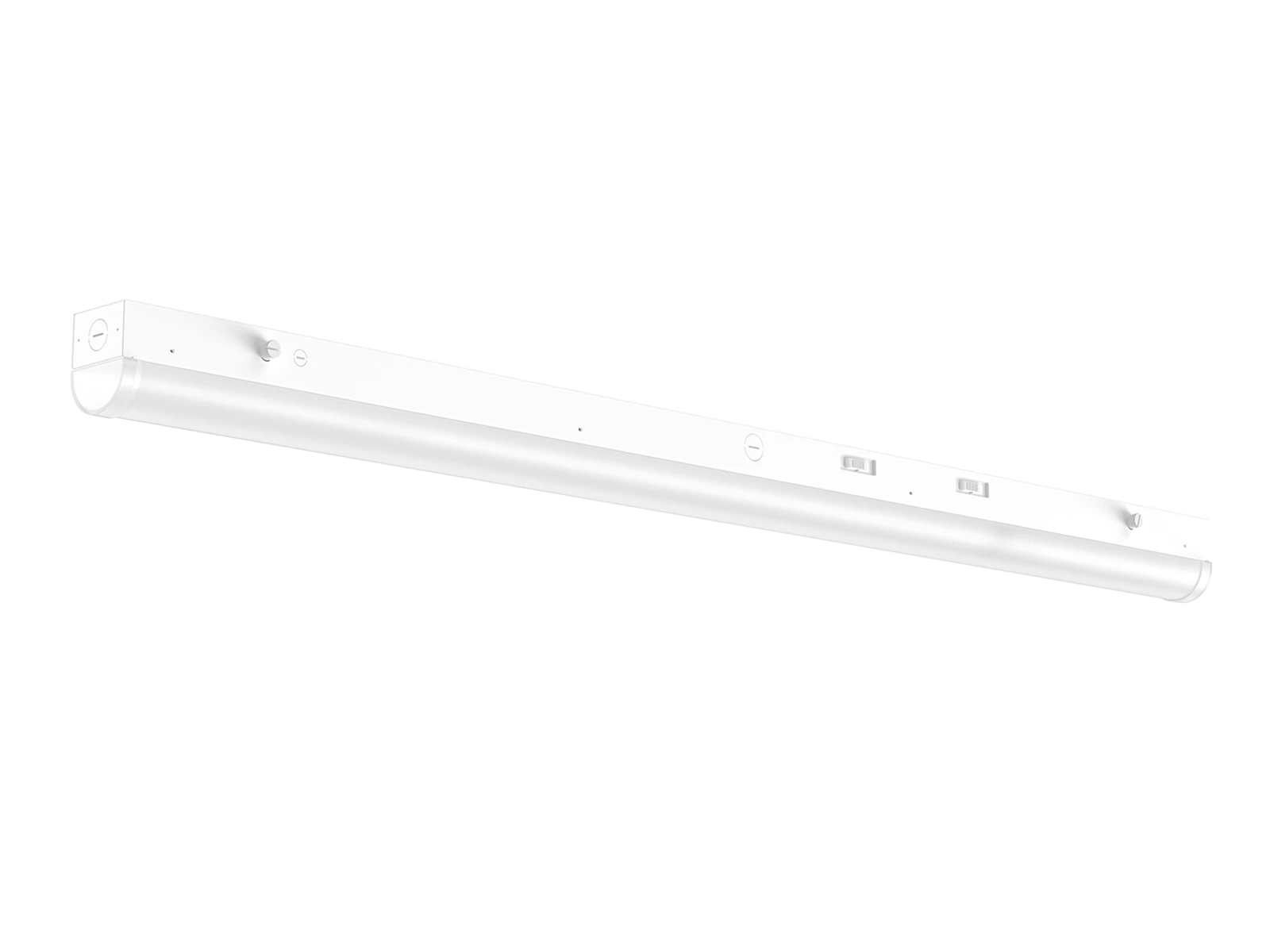

5CCT(3000/3500/4000/5000/6500K) and Wattages Selectable.
120-277VAC & 120-347VAC for options.
High efficacy up to 140lm/W.

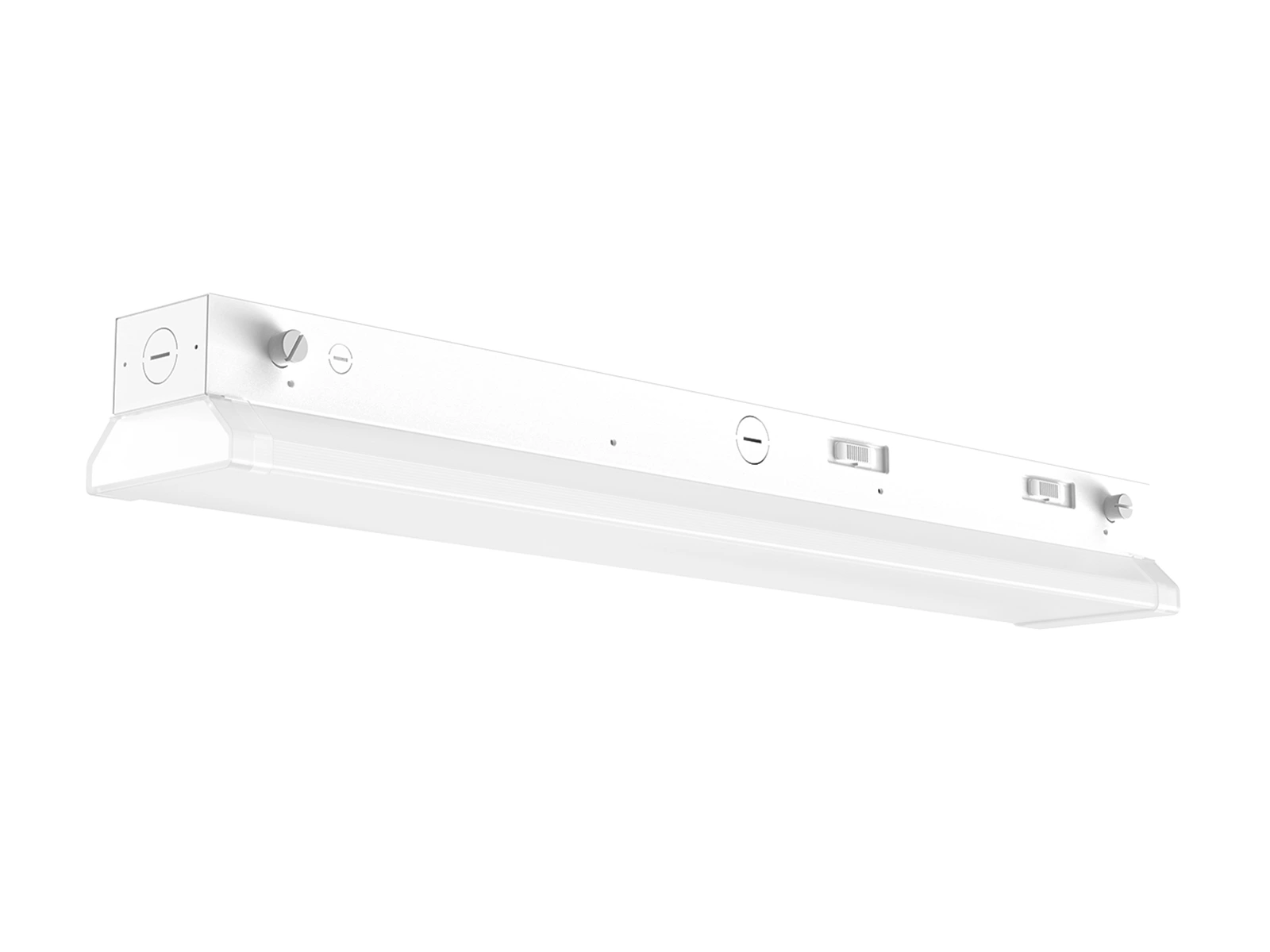

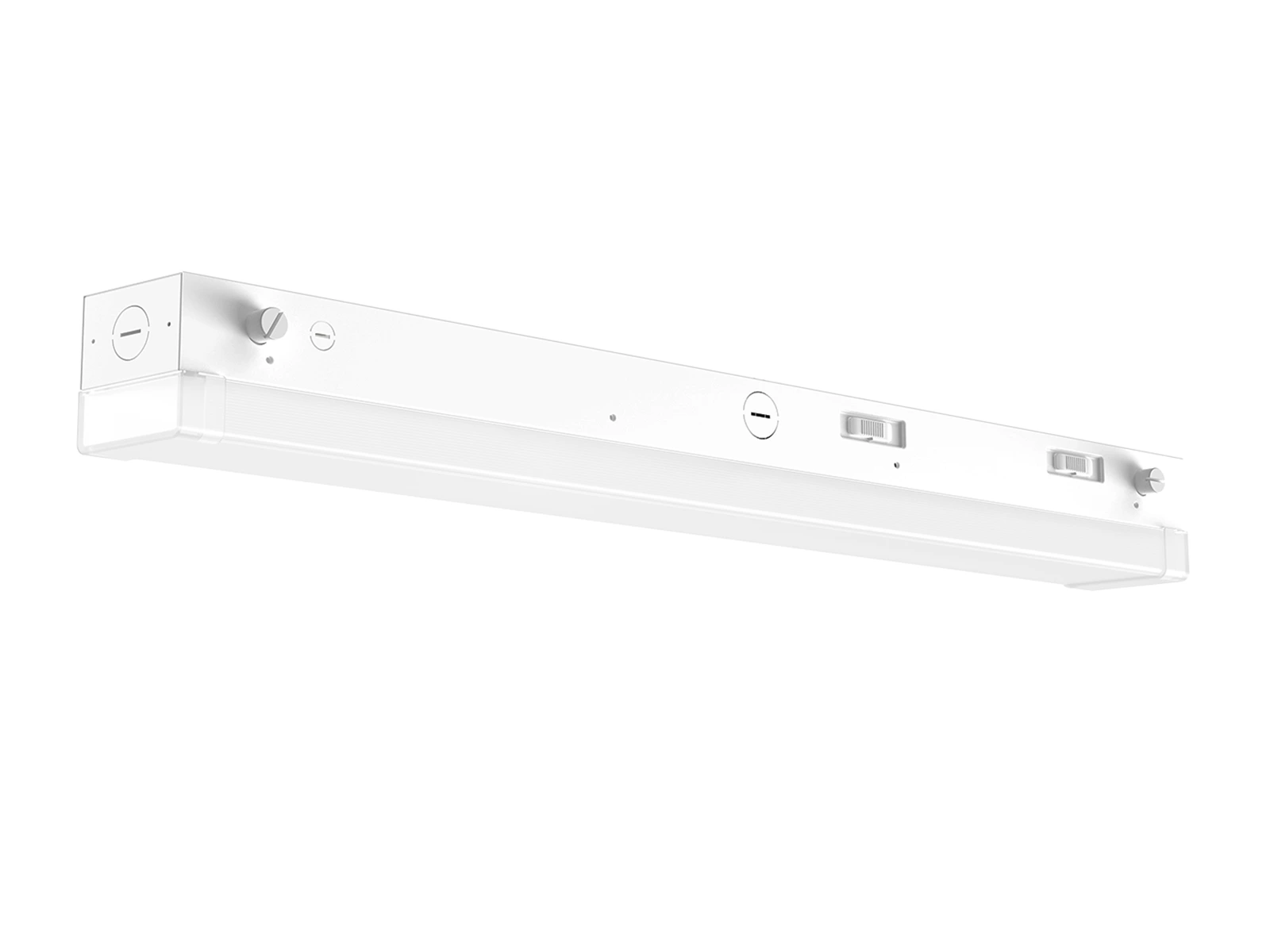

Round diffuse, flat diffuse, and wide diffuse are three types of lens changeable options.
Microwave motion sensor and PIR sensor available.
Emergency battery backup available.
Standard V-hooks accessory for chain pendant and suspended mounting, additional surface mounting is available.

Applications: Warehouses, Parking Garage, Stores, Supermarket, Retails

Model NO. #	Size (ft/mm)	Watts	CCT	LPW	Lumens(±10%)	Voltage	DIM	CRI	Beam Angle
LP03R-2-20Z-A5C5	2FT	20/18/16/14/12W Selectable			2800LM @20W
LP03R-2-20Z-A5C5	61062.975.5mm	20/18/16/14/12W Selectable			2800LM @20W
LP03R-4-40Z-A5C5	4FT	40/35/30/25/20W Selectable			5600LM @40W
LP03R-4-40Z-A5C5	122062.975.5mm	40/35/30/25/20W Selectable			5600LM @40W
LP03R-8-80Z-A5C5	8FT	80/70/60/50/40W Selectable			11200LM @80W
LP03R-8-80Z-A5C5	244062.975.5mm	80/70/60/50/40W Selectable			11200LM @80W
LP03F-2-20Z-A5C5	2FT	20/18/16/14/12W Selectable			2800LM @20W
LP03F-2-20Z-A5C5	61062.565.5mm	20/18/16/14/12W Selectable	5CCT Selectable 3000K		2800LM @20W
LP03F-4-40Z-A5C5	4FT	40/35/30/25/20W Selectable	3500K 4000K 5000K 6500K		5600LM @40W
LP03F-4-40Z-A5C5	122062.565.5mm	40/35/30/25/20W Selectable		140LM/W	5600LM @40W	AC120V-277V AC120V-347V	0-10V	>80	120°
LP03F-8-80Z-A5C5	8FT	80/70/60/50/40W Selectable			11200LM @80W
LP03F-8-80Z-A5C5	244062.565.5mm	80/70/60/50/40W Selectable			11200LM @80W
LP03W-2-20Z-A5C5	2FT	20/18/16/14/12W Selectable			2800LM @20W
LP03W-2-20Z-A5C5	61092.569.5mm	20/18/16/14/12W Selectable			2800LM @20W
LP03W-4-40Z-A5C5	4FT	40/35/30/25/20W Selectable			5600LM @40W
LP03W-4-40Z-A5C5	122092.569.5mm	40/35/30/25/20W Selectable			5600LM @40W
LP03W-8-80Z-A5C5	8FT	80/70/60/50/40W Selectable			11200LM @80W
LP03W-8-80Z-A5C5	244092.569.5mm	80/70/60/50/40W Selectable			11200LM @80W
