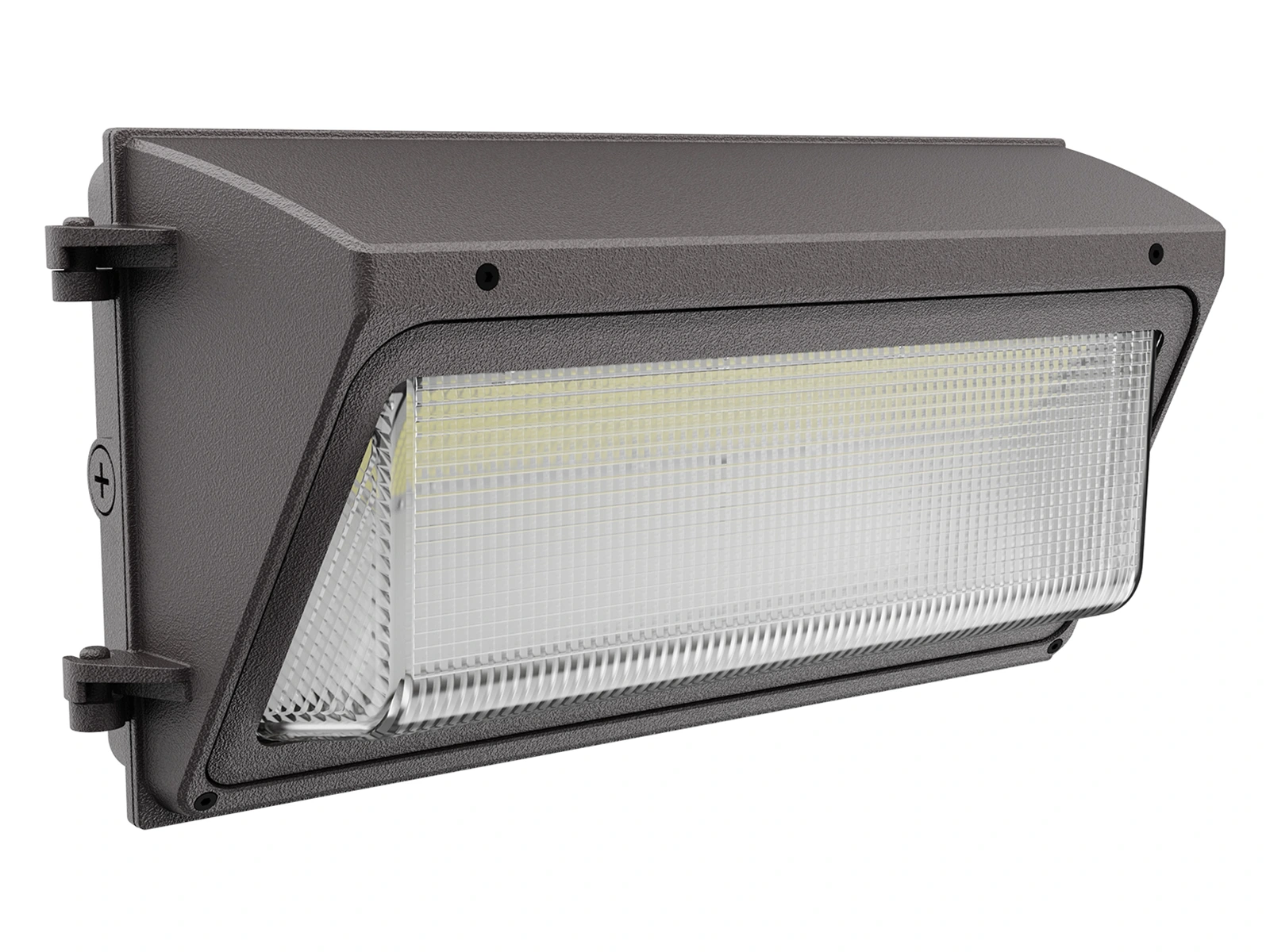

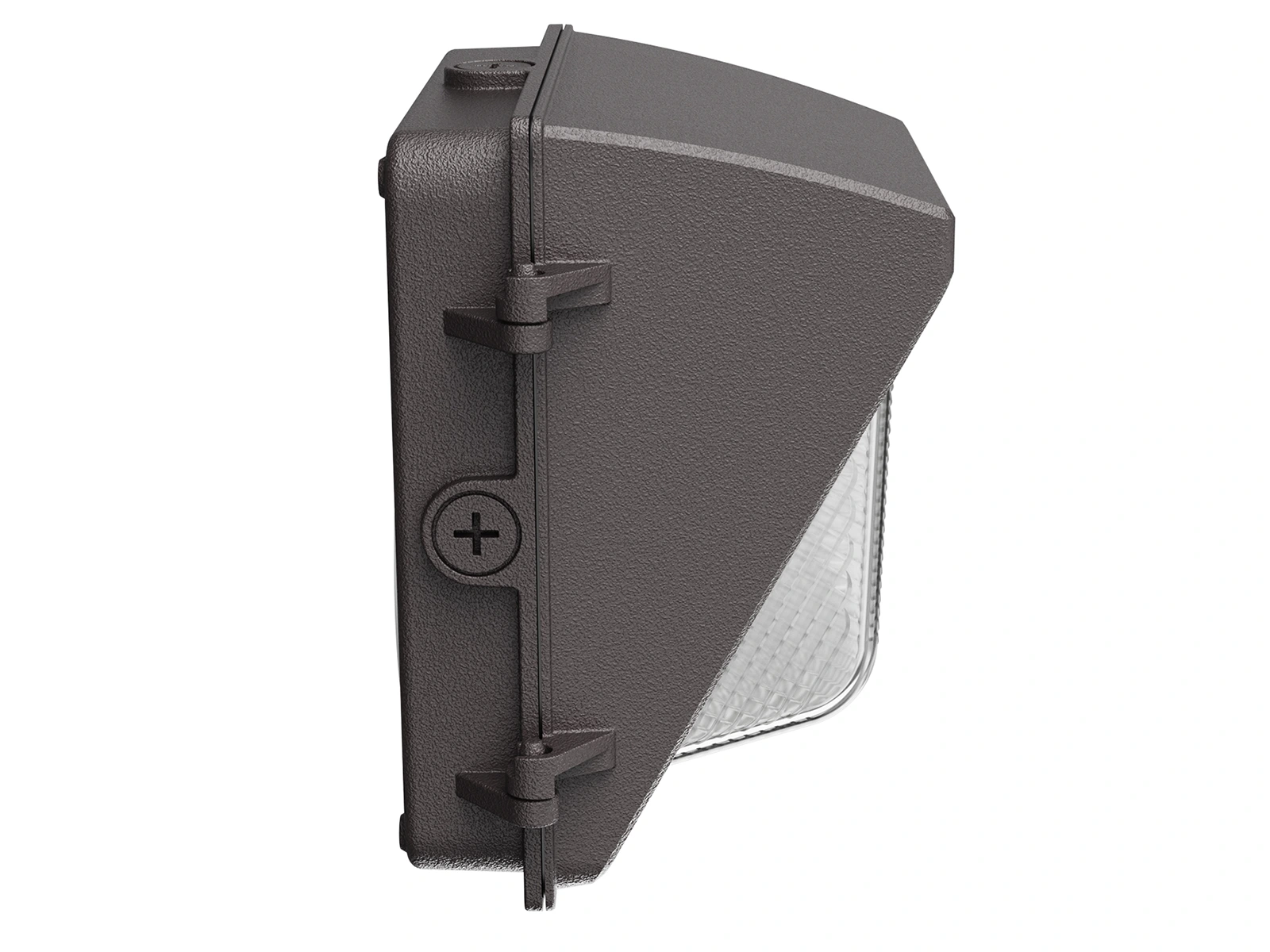

WP09A LED Semi-Cutoff Wall Pack

RZ's new LED semi-cutoff wall packs are your first choice for wall mounted lighting projects. 3 IN 1 switch is selectable for CCT, wattage, and photocell ON/OFF control. D2D photocell can automatically turn off at sunrise or during the day, and automatically light up at sunset or night. It is a highly efficient lighting solution that provides a long-lasting and energy-saving.

  • High efficacy up to 150 lm/W.
  • 3CCT(3000/4000/5000K) and 4 wattages selectable offer SKU reduction.
  • AC120-277V & AC120-347V for options.
  • High UV resistance polycarbonate lens version provides uniform lighting distribution and large beam angle.
  • The Borosilicate prismatic glass version provides a durable lifetime and good texture.
  • ADC12 Aluminum die-casting housing provides excellent heat dissipation.
  • Automated dusk-to-dawn photocell functionality.
  • Reflector and wire guard accessories available.
  • Microwave motion sensor and emergency driver available.
  • Waterproof rated IP65.

Applications: Factory, Warehouse, Walkways, Hallways, Outdoor Commercial, Outdoor Residential

Model NO. # Size Watts 3 CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
WP09A-10-40Z-AD4C3-F 10" 15/20/30/40W Selectable 3CCT
Selectable
3000K
4000K
5000K
150lm/W 6000LM@40W AC120-277V AC120-347V 0-10V driver >80 Type IV
WP09A-10-80Z-AD4C3-F 10" 40/50/60/80W Selectable 12000LM@80W
WP09A-14-40Z-AD4C3-F 14" 15/20/30/40W Selectable 6000LM@40W
WP09A-14-80Z-AD4C3-F 14" 40/50/60/80W Selectable 12000LM@80W
WP09A-14-120Z-AD4C3-F 14" 60/90/100/120W Selectable 18000LM@120W
WP09A-18-150Z-AD4C3-F 18" 80/100/120/150W Selectable 22500LM@150W
