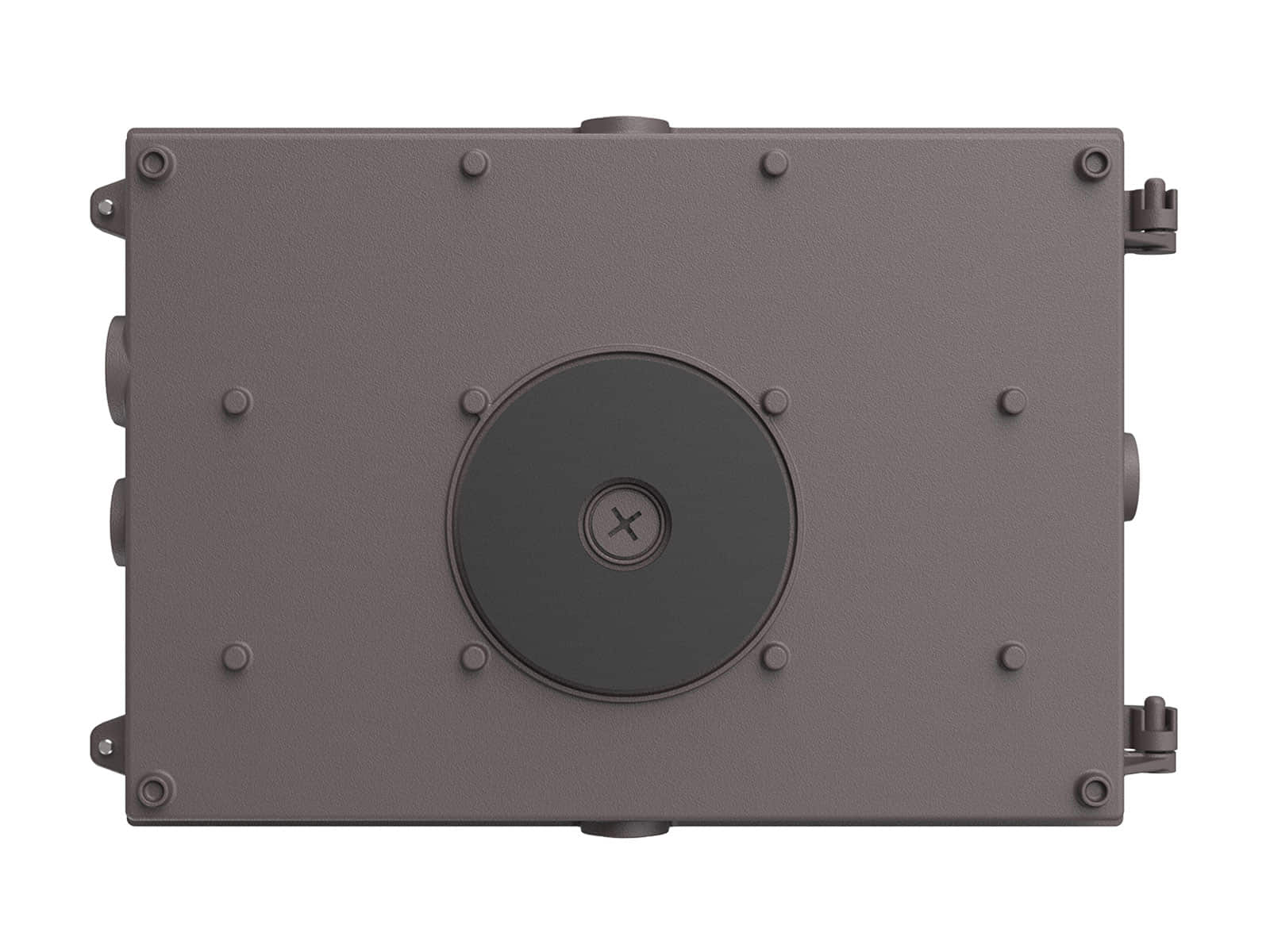

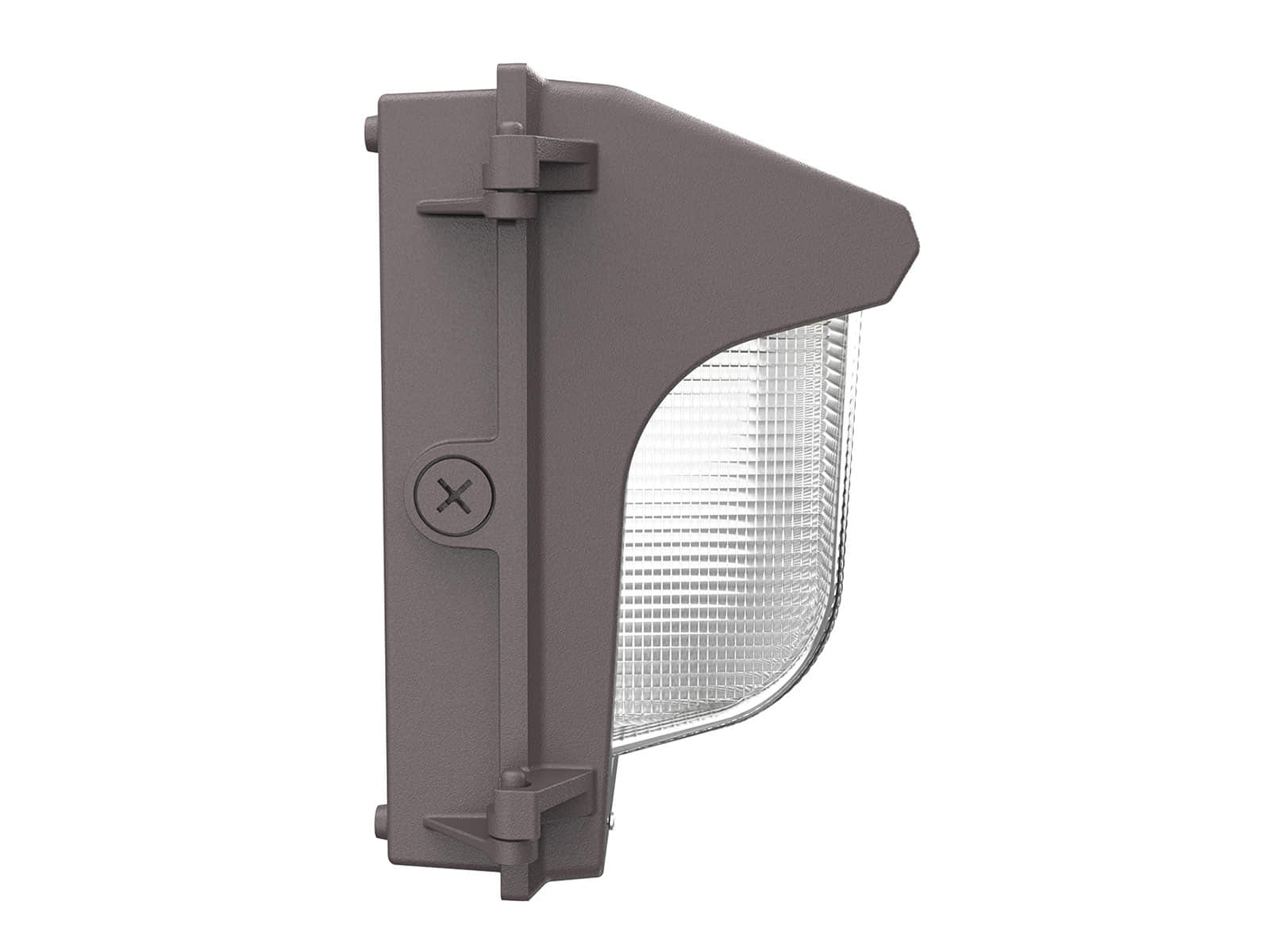

WP18 3 in 1 Selectable LED Wall Pack Light

RZ's new patent design wall packs are your first choice for wall-mounted lighting project that requires different CCT and wattage, dusk to dawn functions, etc... Field in 3 in 1 selectable, such as CCT, wattage and ON/OFF photocell control selectable. More market requirements are to be met by 1 set. No longer will you waiting too long to meet project needs.

Up to 125lm/W.
Easy installation.
Wet location rated IP65.
ETL/DLC Premium listed.
Lifespan: >50,000Hrs.
Motion sensor optional.
3 CCT, 3 Wattages, and ON/OFF Photocell Selectable.
ADC12 Aluminum die-casting housing provides excellent heat dissipation.

Applications: Outdoor commercial building, Entryways, Stairwells, Hallways

Model NO. #	Size (mm)	Watts	CCT	LPW	Lumens(±10%)	Voltage	DIM	CRI	Beam Angle
WP18-40L/M-X-YY	366235 154	40W	Single CCT 3000K-6500K	125lm/W	5000lm	AC120-277V AC120-347V	0-10V	Ra70	100°
WP18-60L/M-X-YY		60W			7500lm
WP18-80L/M-X-YY		80W			10000lm
WP18-100L/M-X-YY		100W			12500lm
WP18-120L/M-X-YY		120W			15000lm
WP18-150L/M-X-YY		150W			18750lm
WP18-40L/M-X-3CCT	366235 154	40W/30W/20W Selectable	3000K/4000K/5000K 3CCT Selectable	125lm/W	5000lm @40W	AC120-277V AC120-347V	0-10V	Ra70	100°
WP18-60L/M-X-3CCT		60W/40W/30W Selectable			7500lm @60W
WP18-80L/M-X-3CCT		80W/60W/40W Selectable			10000lm @80W
WP18-100L/M-X-3CCT		100W/80W/60W Selectable			12500lm @100W
WP18-120L/M-X-3CCT		120W/100W/80W Selectable			15000lm @120W
WP18-150L/M-X-3CCT		150W/120W/100W Selectable			18750lm @150W

WP18 3 in 1 Selectable LED Wall Pack Light
