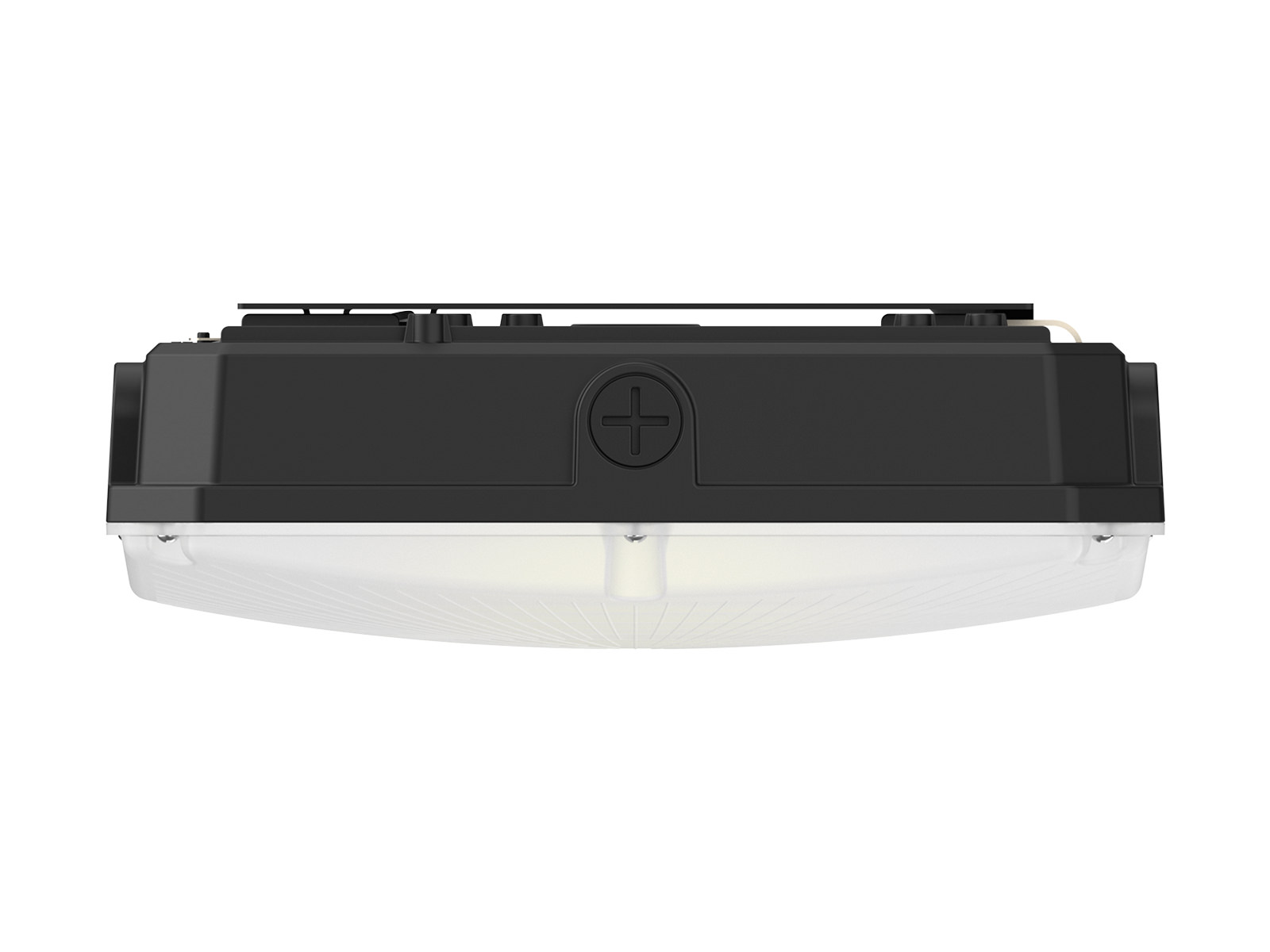

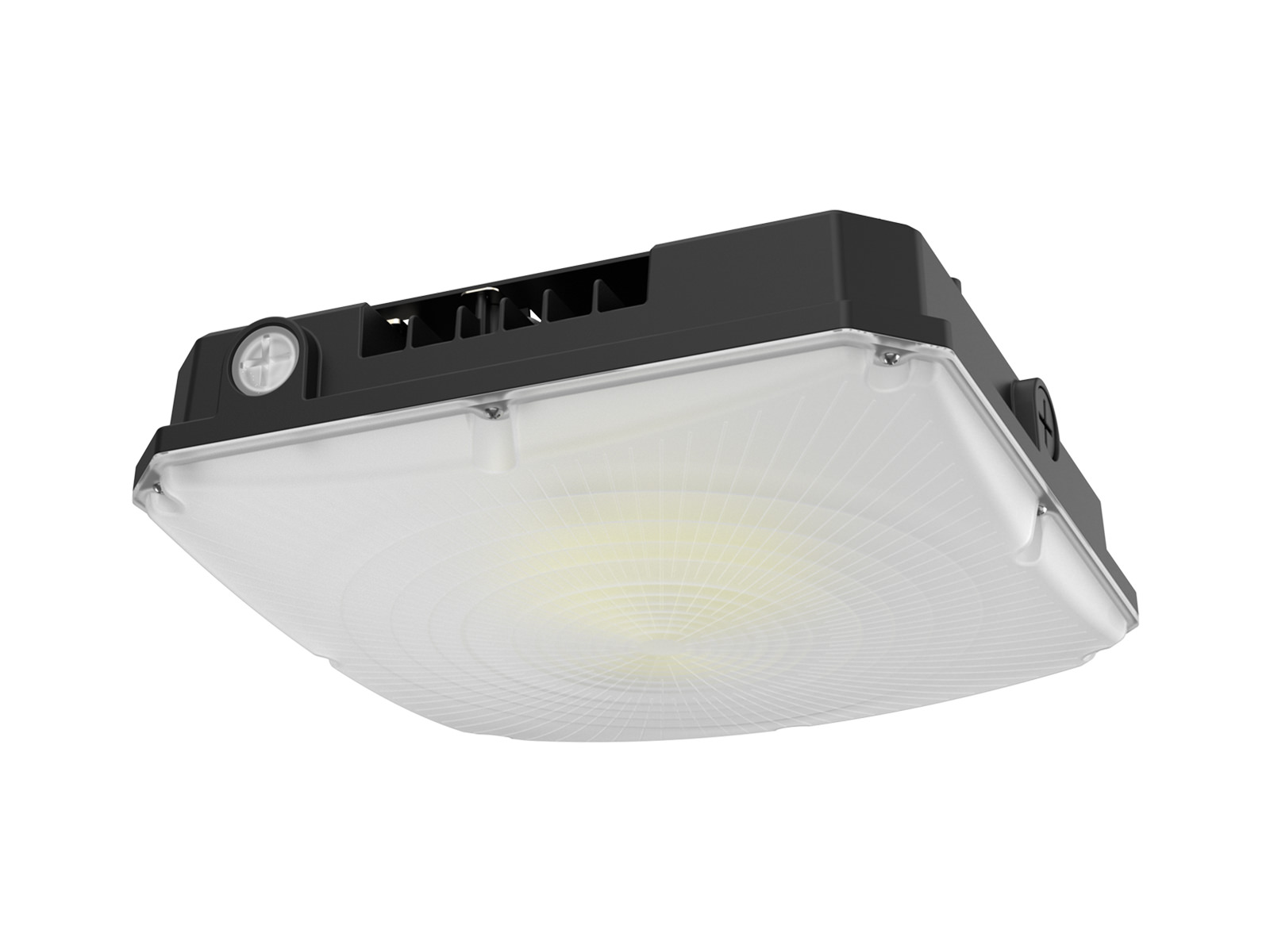

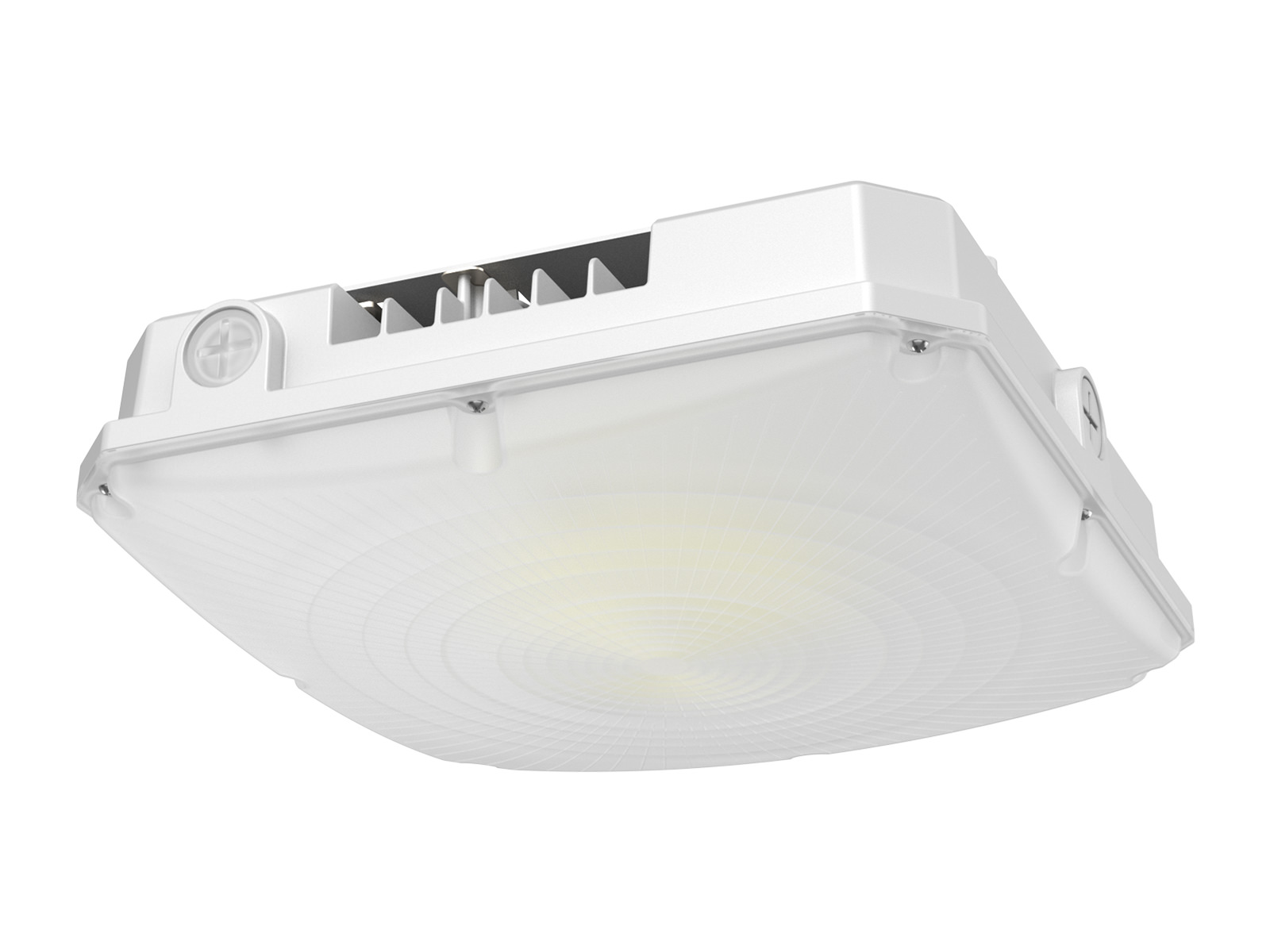

CP01 LED Canopy Light

RZ’s LED canopy lights are versatile and energy-saving ﬁxtures, which are ideal for parking garages, entryways, gas stations, outdoor aisles, and many other commercial applications. It comes with color and wattage selectable, allowing you to customize the LED light output to best ﬁt your projects. Energy and maintenance savings up to 86% versus HID solutions, and can be easily surface/pendant mounted.

Field-adjustable 3CCT & 3 wattages to reduce SKU’s
High eﬃcacy up to 135LM/W
AC120-277V/120-347V for options
Perfect LED canopy lights to replace HID ﬁxtures
Rugged die-casting aluminum housing for long last time using

Applications: Parking garages, Canopies, Storage areas, Outdoor aisles, Gas stations, Walkways, Entryways.

Model	Size（mm)	Watt	Lumens	Eﬃcacy	Volt	CCT	CRI	DIM	Beam Angle
CP01C-40	25525587	40W	5400LM	135LM/W	120-277/120-347V	3000K-6500K or 3 CCT Select	>80	0-10V	120°
CP01C-55	25525587	55W	7425LM	135LM/W	120-277/120-347V	3000K-6500K or 3 CCT Select	>80	0-10V	120°
CP01C-60	25525587	60W	8100LM	135LM/W	120-277/120-347V	3000K-6500K or 3 CCT Select	>80	0-10V	120°
CP01C-70	25525587	70W	9450LM	135LM/W	120-277/120-347V	3000K-6500K or 3 CCT Select	>80	0-10V	120°
CP01C-75	25525587	75W	10125LM	135LM/W	120-277/120-347V	3000K-6500K or 3 CCT Select	>80	0-10V	120°

CP01 LED Canopy Light
