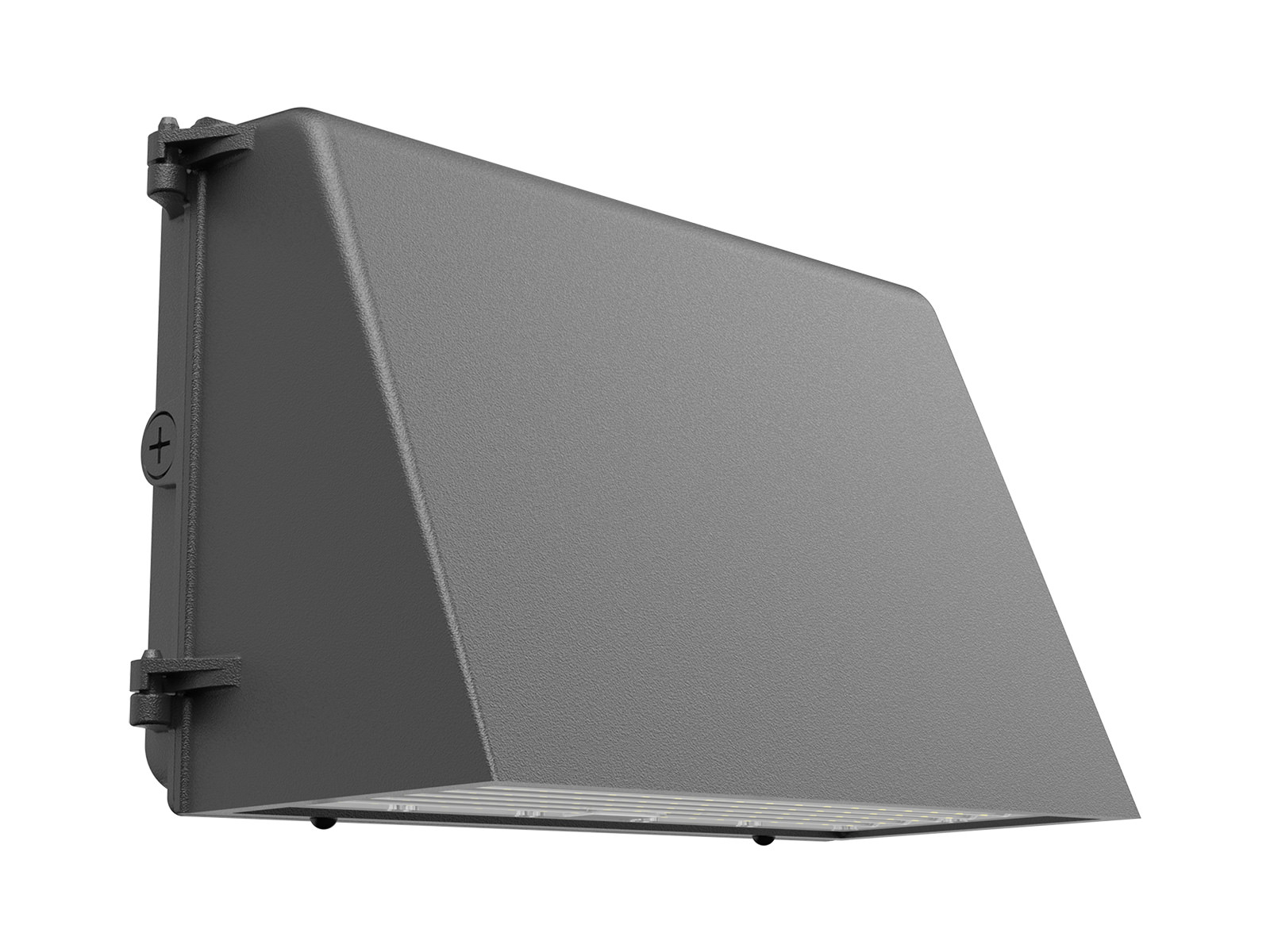

WP09F Outdoor LED Full Cut-Off Wall Pack
WP09F Dark Sky Compliant Wall Pack
WP09F replace the HID wall packs
WP09F Outdoor LED Full Cut-Off Wall Pack
WP09F Outdoor LED Full Cut-Off Wall Pack
WP09F Dark Sky Compliant Wall Pack
WP09F replace the HID wall packs

WP09F Outdoor LED Full Cut-Off Wall Pack

Dark Sky Compliant Wall Pack - WP09F Series
RZ NEW LED Wall Pack is a high-performance fixture to replace the HID wall packs with a 14” install base. Fit for factories, warehouses, commercial buildings, self-storage, entrances, exit ways, and walkways.
Product No. WP09F-30W WP09F-40W WP09F-60W WP09F-80W WP09F-100W WP09F-120W
Wattage 30W 40W 60W 80W 100W 120W
Lumens 3900LM 5200LM 7800LM 10400LM 13000LM 15600LM

Product No. WP09F-40W WP09F-60W WP09F-80W WP09F-100W WP09F-120W
4 Wattages selectable 40/30/20/10W selectable 60/50/40/30W selectable 80/60/40/20W selectable 100/80/60/40W selectable 120/90/60/30W selectable
Lumens 5200/3900/  2600/1300LM 7800/6500/  5200/3900LM 10400/7800/ 5200/2600LM 13000/10400/ 7800/5200LM 15600/11700 /7800/3900LM

Efficacy 130LM/W (±5%) Housing IK08 High-duty Die-cast Aluminum
Input voltage 120-277VAC CRI Ra>80
CCT Single CCT : 3000K-6500K / Selectable CCT: 3000K, 4000K, 5000K Operating Temperature Finish -22°F to 113°F (-30°C to +45°C)            Black/Bronze/Customized (Optional)
THD <20% Additional function 0-10V Dimmable, Photocell,
LED Type 2835   3CCT/ 4 Watts Selectable
Lens PC Life Time L70 @ 54,000Hrs
IP Rating IP65 Warranty 5 Years
Power Factor ≥0.90 Certificates UL/cUL , DLC 5.1 Premium
Frequency 50/60Hz
